AOI X1 Offline Inspection SMT Pick And Place Equipment SMT Assembly Machine

Smt pick and place equipment AOI X1 Offline inspection for SMT Assembly Machine

There are four main settings in the program settings:

1). Coordinate origin PCBA board for detecting SMD

The coordinate origin is the datum point of the component coordinates,

and the lower left corner of the board must be set as the coordinate origin.

Machine testing is to find the position of the component with the coordinate origin as zero,

and the coordinates of the coordinate origin are relative to the machine origin.

The machine origin is set when the machine leaves the factory. The machine origin of each machine is different,

when the program programmed on one machine is copied to another machine,

only the coordinate origin of the program needs to be reset.Yamaha accessories

2). PCB board size: The PCB size can be measured in the upper right corner of the PCB.

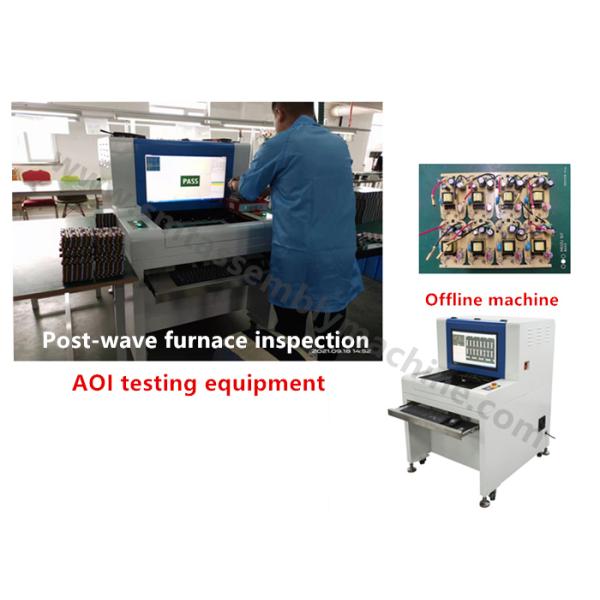

3). Application mode Post-wave furnace inspection

Step: Move the center of the cross (the center of the lens) to the lower left corner of the PCB,

so that the cross includes the PCB, click [Current Position] of the surface origin in the pop-up window,

the system will automatically calculate the coordinates of the current cross center, Detection of PCBA products

the same is true to move the center position of the cross to the upper right corner of the PCB,

click the "Current Position" of the PCB size to record the PCB size. Once defined, click (Next).

Function parameter

AOI Smt pick and place equipment

Offline Inspection SMT Assembly Machine

AOI SMT Assembly Machine
